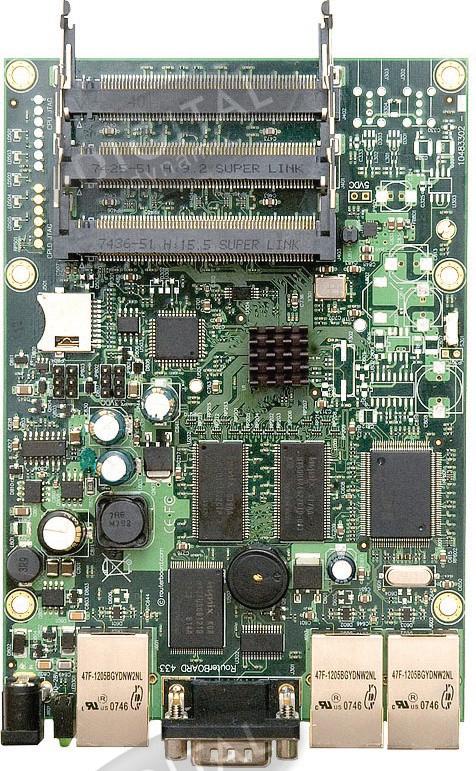

The Mikrotik RouterBoard 433AH with 3 Lan and 3 Mini-PCI slots is based on the new 680MHz Atheros AR 7161 CPU which works at up to 800MHz
The RB433AH is a more powerful version of the standard RB433 and is capable of supporting new RouterOS features, while the additional memory card can be used for a Dude database.
The 680MHz Atheros MIPs 24K CPU, that can be overclocked to 800MHz, with a 64KB/32KB instruction/data cache is possibly the fastest CPU used in low cost wireless access points.
The three Ethernets and mpci slots give you ample data interfaces to put the full CPU power to work.
| CPU | Atheros AR7161 680MHz network processor (Tested at 800MHz) |
| Storage | 64MB onboard NAND memory chip and microSD |
| Ethernet | Three 10/100 Mbit/s Ethernet ports with Auto-MDI/X |
| Mini PCI | Three MiniPCI Type IIIA/IIIB slots |
| Serial Port | One DB9 RS232C asynchronous serial port |
| Boot Loader | 2.19 RouterBOOT |
| Dimensions | 105x150mm |
| Power Consumption | ~3W without extension cards, maximum – 25 W, 16W output to cards |
