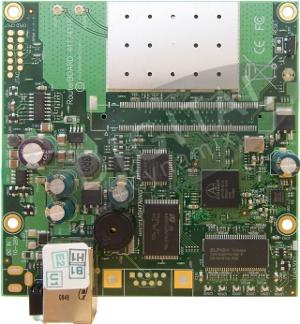

MikroTik RouterBoard RB411R

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • MikroTik RouterBoard RB411R

MikroTik RouterBoard RB411R

Please Call for Price

Quick Overview

The RB411R is a small CPE type RouterBOARD wireless router with an integrated 2.4GHz wireless card.
RB411R includes RouterOS - the operating system, which can be a router, firewall, bandwidth manager, a CPE and more - all at the same time.


The RB411R has a very low power consumption rating - only 5.6W, ideal for solar panel installations. One small device - with all the power of RouterOS. At a very special price.



The RB411R is a small CPE type RouterBOARD wireless router with an integrated 2.4GHz wireless card.
RB411R includes RouterOS - the operating system, which can be a router, firewall, bandwidth manager, a CPE and more - all at the same time.

The RB411R has a very low power consumption rating - only 5.6W, ideal for solar panel installations. One small device - with all the power of RouterOS. At a very special price.

Memory and Storage Devices
Onboard Memory - The boards are equipped with 32MB DDR SDRAM onboard memory
Onboard NAND Storage Device - The boards are equipped with one 64 NAND nonvolatile memory chip.

Extension Slots
MiniPCI Slot - None
Input / Output Ports
LAN1 Port with PoE - This 10/100Mb/s Ethernet port is recognized as the first LAN interface. It is compatible with passive (non-standard) Power over Ethernet. The board accepts voltage input from 12 to 28 V DC. This board is not compatible with power over data lines.

LEDs
Power LED - Power LED is on when the board is powered.
User LED - User LED may be programmed at user's option. It is lit by default when the board starts up, then it is turned off when the bootloader runs kernel.
CPU Atheros AR7130 300MHz
Storage 64MB onboard NAND memory chip
Ethernet One10/100 Mbit/s Ethernet with Auto-MDI/X
Built in Wireless One Integrated Atheros Based wireless card with 802.11b & 802.11g. RX Sensitivity: 802.11g: -87dBm @ 6Mbps to -69dBm @ 54Mbps 802.11b: -92dBm @ 1Mbps to -83dBm @ 11Mbps
Operating System MikroTik RouterOS v3 Level 3 license
Dimensions 10.5 cm x 10.5 cm
Operational Tempreture Operational: -20°C to +65°C
Power Power options PoE: 10- 28V DC no power over datalines. No Power jack
Power Consumption ~3W, maximum - 5 W
