RouterBoard 600, 3 Ethernet, 4 miniPCI

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RouterBoard 600, 3 Ethernet, 4 miniPCI

RouterBoard 600, 3 Ethernet, 4 miniPCI

Please Call for Price

Quick Overview

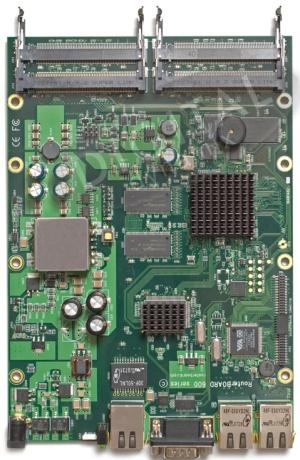

The Mikrotik RouterBOARD 600 is a high performance wireless platform with a new state of the art PowerPC networking processor. It comes complete with four Mini-PCI slots, three gigabit Ethernet ports and it is the fastest wireless board that MikroTik has ever made.


The Mikrotik RouterBOARD 600 is a high performance wireless platform with a new state of the art PowerPC networking processor. It comes complete with four Mini-PCI slots, three gigabit Ethernet ports and it is the fastest wireless board that MikroTik has ever made.

The RB600 has two Compact flash slots for webproxy cache and configuration backups of the User Manager database or the Dude server.

The RB600 includes RouterOS - the operating system, which turns this powerful system into a highly sophisticated router/firewall/bandwidth manager or hotspot.

CPU MPC8343E 266/400MHz network processor
Ethernet Three 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
Mini PCI Four MiniPCI Type IIIA/IIIB slots
Expansion Slot Daughterboard support, including RB500 daughterboards
Serial Port One DB9 RS232C asynchronous serial port
Power IEEE802.3af PoE: 38..56V DC including over datalines. Power jack: 10..56V DC
Power Consumption ~9W without extension cards, maximum – 35+ W
