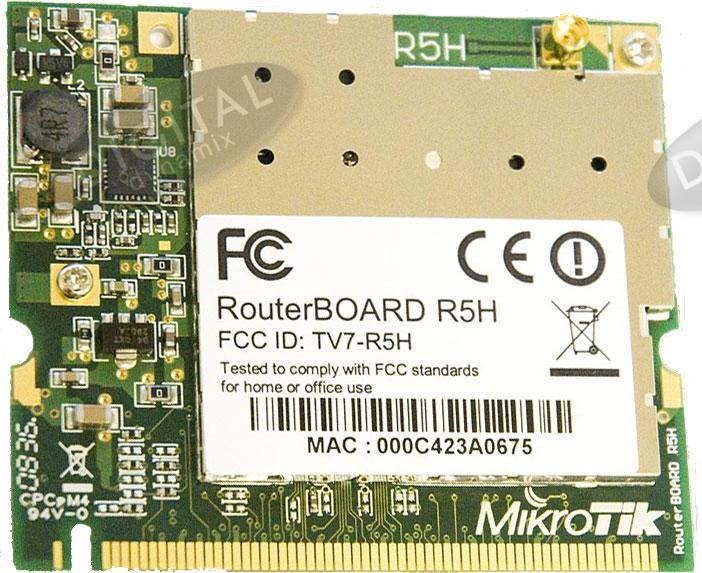

The RouterBOARD R5H is a high power 802.11a miniPCI card with a sturdy MMCX antenna connector.

This industrial grade 802.11a wireless card from MikroTik sets a new standard in quality. The MMCX antenna connector provides a secure and sturdy connection to your antenna and a special screw connection allows you to securely fasten the card in it’s place.

The R5H provides a selection for three kinds of filters in RX path to reject unwanted signals. It will increase alternate channel rejection capability, so that more bandwidth can be used for communication. Because of the high sensitivity of the R5H, it can achieve the same distances as competing products with higher power.

- Specifications -
- Chipset: Atheros AR5414A
- Connectors: DIP type MMCX RF connectors
- Interference: High rejection filter to reduce interference
- Powering: 3.3VDC; 1.6A max (1.1A typ.)

- Frequencies -
- 802.11a 4.920 – 6.100 (5 MHz step)

- Transfer Data Rate -
- 802.11a(Normal mode):54,48,36,24,18,12,9,6 Mbps, auto-fallback
- 802.11a(Turbo mode):108,96,72,48,36,24,18,12 Mbps, auto-fallback

- Output Power -
- Up to 25dB (320mW)
